P5 Outdoor Module Specs | ||
| 5 | MM | Pixel Pitch |
| 160 x 320 | MM | Module Dimenions |
| 32×64=2048 | DOTS | Display resolution/panel |
| 2727 SMD -1R-1G-1B | – | LED Package |
| NationSatr | – | LED brand |
| 1 / 8 scan | – | Driving method |
| Chipone | – | driver IC Brand |
| 40000 | Dot/M2 | pixel density |
| HUB75 | – | Module port |
| Copper wire | – | Chip LED wire |
| 5 | VDC | Module working voltage |

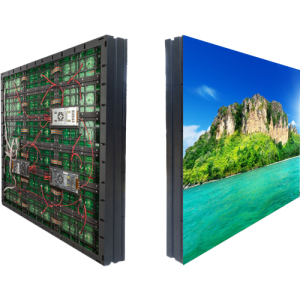

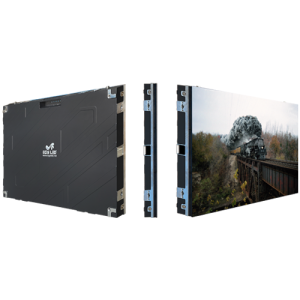

P5 Outdoor Cabinet Specs | ||
| 960*960 | MM | Cabinet dimensions |
| 192×192=36864 | DOTS | Display resolution/Cabinet |
| >5 | M | Best viewing distance |
| 160 / 140 | Deg. | Viewing angle |
| 550 | W/M2 | AVG. consumption |
| 800 | W/M2 | MAX consumption |
| AC 46- 54 HZ 220V± %15 | VAC | working voltage |
| >60 | HZ | Frame Frequency |
| 1920 – 3840Hz | HZ | Refresh frequency |
| Up to 6500 nits | CD/ M2 | Equilibrium brightness |
| 97% | – | Brightness uniformity |
| 100 levels | – | Brightness Adjustment |
| – 10 ~ 60 | C | Working environment temperature |
| 10% – 90% | RH | Working environment humidity |
| 8500K – 11500K | – | Color temperature |
| 4096 – 65536 grade | – | Gray Calibration |
| 12bit – 16bit | – | Color Depth |
| 97% | – | Color uniformity |
| >5000 | HOURS | Mean free error time |
| PC nonlinearity card- DVI- HDMI- SDI- VGA- CVBS- etc. thru. a video converter | – | input signal |
| Color light– Linsn- HD etc. | – | Control system |
| synchronous and asynchronous control | – | Control Mode |
| 100000 | HOURS | Life |
| >48 | HOURS | Continuous OOC Point |
| IP65 | – | Protection Level |
| <0.0001 | – | Lamp failure frequency |
| Die-casting Magnesium | – | Cabinet material |
| 27 | kilo | Cabinet weight approximate |
| rear service | – | Maintenance method |
